Description

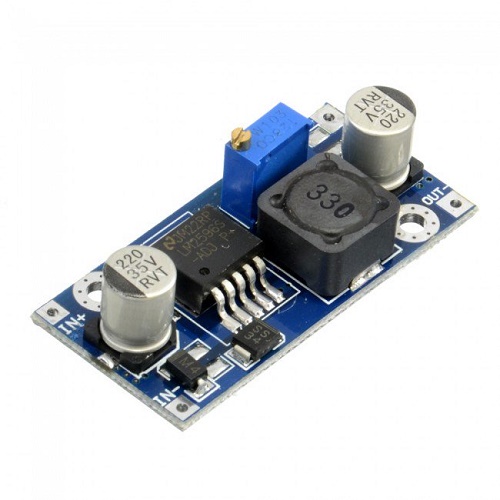

Adjustable Switching Power Supply Module IN 4V-35V OUT 1.5V-30V

A versatile power supply DC-DC converter module that offers a wide range for both input voltage (4V-35V) and output voltage (1.23V-30V). Tabs on each side allow for the input / output leads to be easily soldered on.

Features:

• Input voltage: 4V to 35V DC
• Output voltage: 1.23V to 30V
• Output current: 3A max
• Regulator IC: LM2596S
• Efficiency: 92%
• Switching frequency: 150Khz
• Output ripple: 30mV max
• Load regulation: ±0.5%
• Voltage regulation: ±2.5%
• Opearting temperature: -40º to 85ºC
• Dimensions: 48 x 23 x 14 (LxWxH)

LM2596 dc-dc hw-411
