Description

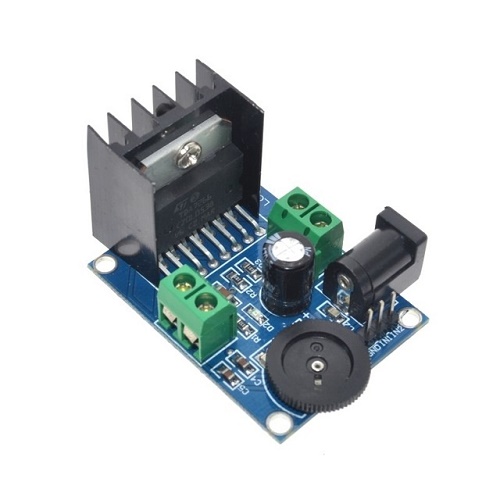

DC 3 to 18V TDA7266 Audio Power Amplifier Module 5-15W

Description:

1. The on-board TDA7266 audio power amplifier chip, double track 7W + 7W, suitable for 4-8ohm 5-15W speakers
2. The main pin has led chip, convenient external device control, on-board 2 way 5.08(mm) pitch 2P terminal, represent left and right channel output
3. The on-board dial potentiometer, can adjust the output volume
4. Support DC socket, terminal blocks, row needles 3 power input mode, the default is DC socket, working voltage: 3-18V
5. The board size: 45(mm)x33(mm)
