Description

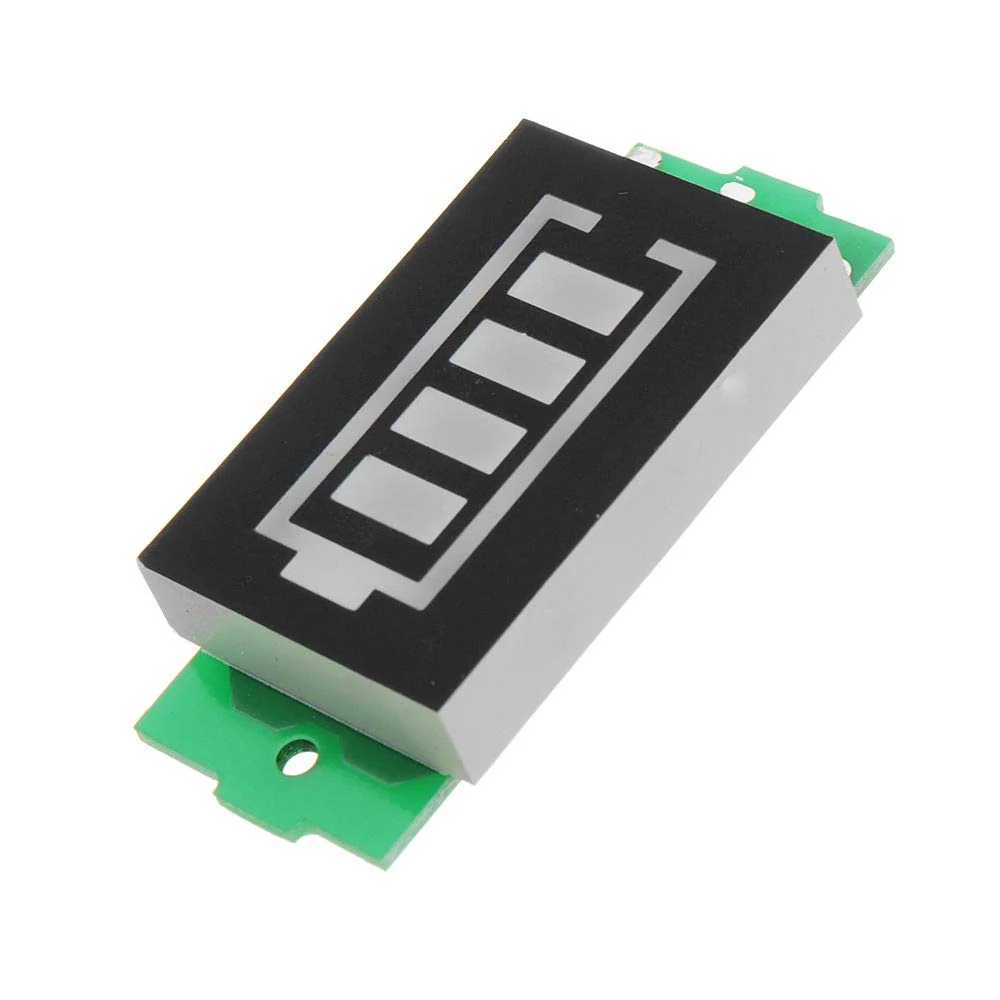

Lithium Battery Level Indicator Module 1S to 8S (MH-DL18S)

• Battery Supported: Lithium Battery
• Operating Temperature: -20℃~+50℃
• Working Voltage: 3V~34V (1S to 8S)
• Working Current: 5mA
• Color: Green / BLUE and Outline red

Operating modes:

• battery voltage exceeds N(number of battery cells) * 3.3V, one bar of the indicator will be displayed
• battery voltage exceeds N*3.5V, two indicator bars will be displayed
• battery voltage exceeds N * 3.7V, three bars of the indicator will be displayed
• battery voltage exceeds N*3.9V, four indicator bars will be displayed
• battery voltage is less than N*3.3V, 4 indicator bars will be off (battery needs to be charged).
• voltage measurement range: 3 – 34 V
• measurement accuracy: 2%
• module dimensions : 44 x 20 x 7 mm

This battery type capacity indicator module display shows the display is more intuitive and more beautiful. A wider range of applications, nickel-metal hydride batteries, 18650 and polymer lithium battery packs, lead-acid storage, electric vehicle batteries, electric equipment can be used. This display has a reverse connection function, even if the positive and negative connection will not burn. To use the display just connect the positive and negative terminals of the display board to the positive and negative terminals of the battery under test. The digital tube will display the real-time battery power.
