Description

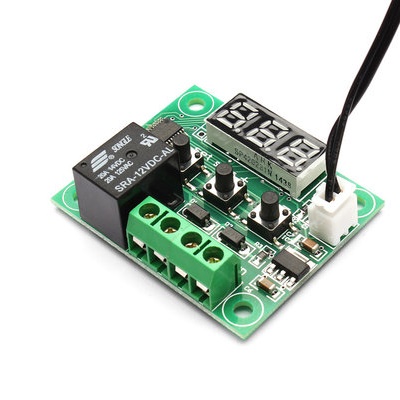

Temperature Control Switch Thermostat Thermometer W1209 DC 12V (-50 to +110)

Specification:

Supply voltage: DC 12V
Static current: ≤35mA, pull-up current ≤65mA
Output voltage: DC 12V
Output current: 20A relay
Measuring input: NTC (10K 0.5%) Waterproof sensor
Environmental conditions: -10 ~ 60 ℃, Humidity 20% ~ 85%
Dimensions: 48 x 40mm
Cable length: about 52 cm
Temperature regulation mode: ON / OFF
Temperature range: -50 ~ + 110 ° C
Accuracy of control: 0.1 ° C
Hysteresis Accuracy: 0.1 ° C
Refresh Rate: 0.5S
High Temperature Protection: 0 ~ 110 ° C
Resolution: When the temperature is 0.1 ° C, the resolution is -9.9 ~ 99.9, the other temperature segment is 1 ° C
