Description

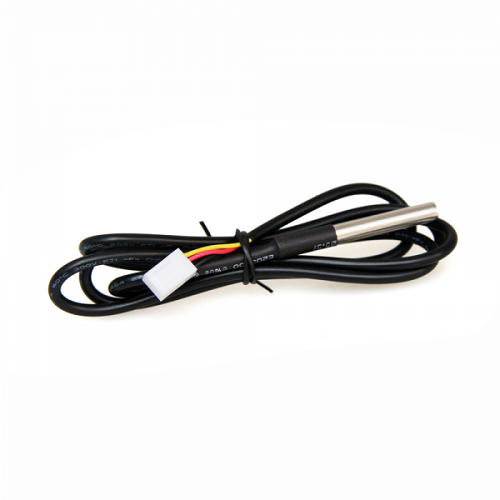

Waterproof Temperature Sensor DS18B20

This is the temperature sensor based on chip DS18B20 consisting of a waterproof probe and long wire shape, which is perfect for immersive temperature detectionor detectingg something far away. The DS18B20 provides 9 to 12-bit (configurable) temperature readings over a 1-Wire interface, so that only one wire (and ground) needs to be connected from a central microprocessor.

The original one includes three wires inside we adjusted it into a 3-pinconnector so that you can use it simply with Make block Me Adapter. (there is no soldering required to connect to our Me Base Board just like below picture).

Please note that while the sensor is good up to 125°C, the cable which is jacketed in PVC will be damaged easily, so we suggest keeping it under 100°C.

Features:

•  Waterproof
•  Uses 1-Wire interface- requires only one digital pin for communication
•  Stainless steel tube 6mm diameter by 35mm long
•  Arduino library for easy programming

Dimensions: Probe is 6mm in diameter and roughly 50mm long. Overall length (including wire) is 0.5 meter

Specification:

•  Power supply:  3.0V to 5.5V
•  Wide temperature range: -55°C to +125°C
•  High accuracy: ±0.5°C( -10°C to +85°C)
