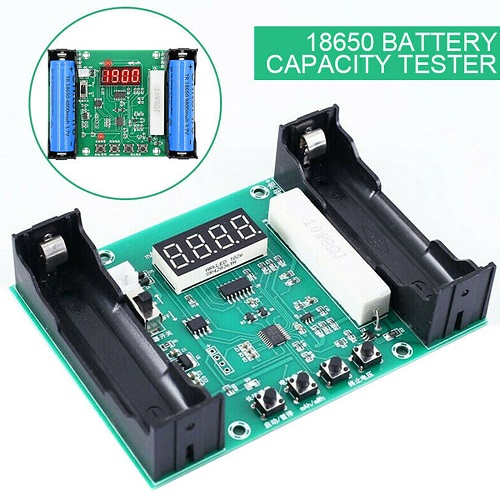

XH-M240 Lithium Battery Capacity Tester

It is a Lithium battery capacity tester. It is used to test the voltage, discharge capacity and discharge energy of a 18650 lithium battery.

This battery capacity tester is used to test the voltage, discharge capacity, and discharge energy of a 18650 lithium battery. With a dual working power supply, it has high working efficiency and saves your time. It can display discharge capacity and discharge energy. And it supports a parameter memory function, convenient for checking next time.

Note: Battery is not included with this product.



Features:

1. Dual working power supply
2. 18650 battery special tester
3. Support display discharge capacity
4. Support display discharge energy
5. Support parameter memory function
6. Made of high-quality electronic components
7. Solid, durable, good conductivity and performance
8. Long service life

Specification:

1. Work Voltage: DC 5V~12V or 18650 battery
2. Stand-by current: 5~7mA
3. Discharge current: 500mA
4. Load power: 10W 8ohm
5. Measuring voltage accuracy: 0.1V
6. Discharge capacity accuracy: 1mAh
7. Discharge energy accuracy: 1mWh
8. Work Temperature: -25℃~85℃
9. Work Humidity: 5%~95%RH
10. Size: 110*80*25mm



General Specification
Model	XH-M240
Display Accuracy	0.1
Measurement Accuracy	1mAH
Recommended Power Supply	DC 5-12V
Standby Current	5-7mA
Discharge Current	500mA
Load Power	10W, 8Ω
Installation Hole	3mm
Color	Green
Length (mm)	110
Width (mm)	80
Height (mm)	25
Weight (gm)	50
Shipment Weight	0.05 kg
Shipment Dimensions	12 × 8 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

Documentation(How to use):

1. Connect work voltage DC 5V~12V from white XH2.54-2P socket or install a 18650 battery at left battery socket.
2. Install a measured 18650 battery at the right battery socket.
3. Turn on the power supply switch. Then the screen will display the current battery voltage.
4. Set discharge stop voltage. Press button + and – to set discharge stop voltage. Parameters can be saved automatically. It is recommended that the 18650 battery stop discharge voltage be set to 3.5V.
5. Short press the first(left) button to start measuring. Then the LED indicator D3 will turn ON.
6. Short press the second button to switch display capacity(mAh), energy(mWh) and voltage.
7. Long press first(left) button to clear display capacity(mAh) and energy(mWh).
8. The battery is tested and shows the battery test value when D3 LED indicator start blinking.

Package Includes:

1 x XH-M240 Battery Capacity Tester mAh mWh for 18650 Lithium Battery.

Click Here to See Video Tutorial
